Product Description
HVLS fans blanket a very large area with constantly moving air to create a comfortable space. Thus, under hot and humid weather, these large ceiling fans will fully create an evaporative cooling effect of 4 to 6 ℃.
HVLS fan technique can remove the temperature stratification from the floor to the ceiling with a temperature difference as high as 15℃. Greatly reduces the cycle frequency of the heating system and saves on energy.
|
Voltage |
220V/380V |
|
Frequency |
50HZ/60HZ |
|
RPM(min/max) |
0/42rpm |
|
Power |
1.5KW |
|
Coverage area |
2300 |
|
Warranty |
3 year |
|
Protection |
IP55/IP65 |
HVLS means High Volume Low Speed ,the HVLS Air Fan is the new solution of energy saving to solve the ventilating or cooling problem of large spaces.

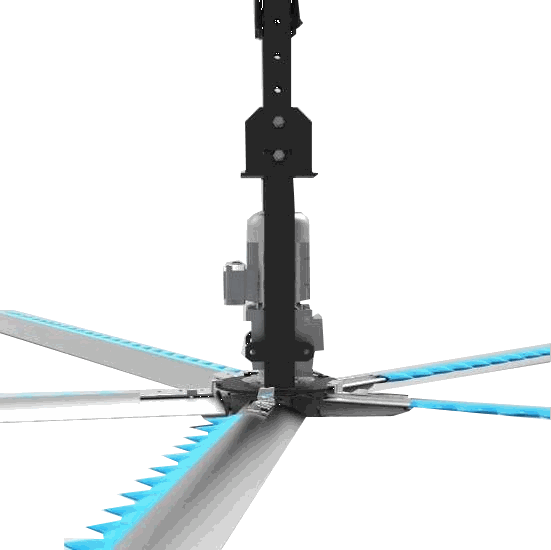

The HVLS super large industrial ceiling fan runs at a low speed to slowly move a lot of air and continuously blow away the moisture, linear blades produce large airflow towards floor on both sides, resulting in unique and efficient horizontal airflow which can blow towards 18 meters at faresthest from the center of fan-horizontal airflow moves towards the side wall or other large barriers to refresh the air continuously.
Special dressing blade advantages for industrial HVLS ceiling fan:
1) Five pcs unique designed blades increase aerodynamic efficiency by 40% compared with traditional fan blade.
2) Whale fin design makes the fan run more smoothly with less resistance. Not only increased efficiency conversion, but also reduced noise when fan is running. The reduced wind resistance also reduces the load of the motor and increases the motor's operating life.
3) The most striking advantage is improve the air volume, under ideal condition, one unit 24ft HVLS fan can cover 2,300sqm area. Make the fan cover area and performance to achieve the performance breakthrough that was impossible in the past.
