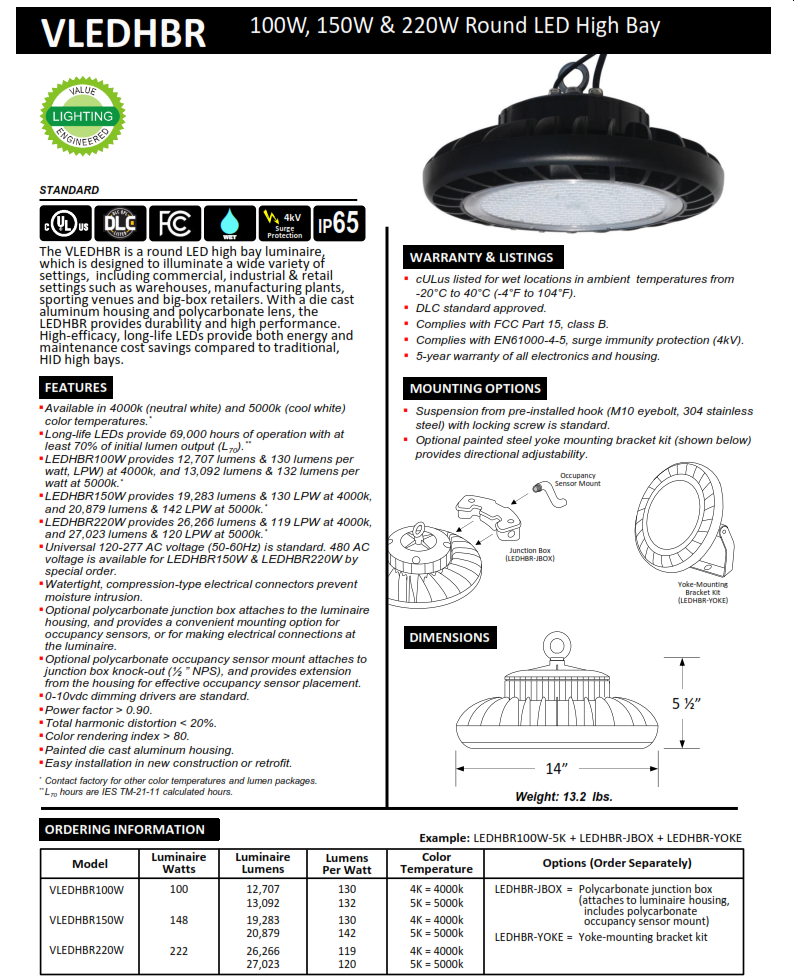

• LED HIGH BAY ROUND - 100W, 150W & 220W, 5000K - The VLEDHBR is a round LED high bay luminaire, which is designed to illuminate a wide variety of settings, including commercial, industrial & retail settings such as warehouses, manufacturing plants, sporting venues and big-box retailers. With a die cast aluminum housing and polycarbonate lens, the VLEDHBR provides durability and high performance. High-efficacy, long-life LEDs provide both energy and maintenance cost savings compared to traditional, HID high bays.   ▪ Available in 5000k (cool white) color temperature.* ▪ Long-life LEDs provide 69,000 hours of operation with at least 70% of initial lumen output (L70).** ▪ LEDHBR100W-5K provides 13,092 lumen output from 100 watts input (132 lumens per watt).* ▪ LEDHBR150W-5K provides 20,879 lumen output from 147 watts input (142 lumens per watt).* ▪ LEDHBR220W-5K provides 27,023 lumen output from 226 watts input (120 lumens per watt).* ▪ Universal 120-277 AC voltage (50-60Hz) is standard. 480 AC voltage is available for VLEDHBR150W-5K & VLEDHBR220W- 5K by special order. ▪ 0-10vdc dimming drivers are standard. ▪ Power factor > 0.90. ▪ Total harmonic distortion < 20%. ▪ Color rendering index > 80. ▪ Painted die cast aluminum housing. ▪ Easy installation in new construction or retrofit. ▪  Model #'s VLEDHBR100W VLEDHBR150W VLEDHBR220W * Contact factory for other color temperatures and lumen packages. ** L70 hours are IES TM-21-11 calculated hours.
  • VLEDHBR LED HIGH BAY ROUND - 100W, 150W & 220W, 5000K - Round LED high bay luminaire, which is designed to illuminate a wide variety of settings, including commercial, industrial & retail settings such as warehouses, manufacturing plants, etc.

    • VLEDHBR LED HIGH BAY ROUND - 100W, 150W & 220W, 5000K - Round LED high bay luminaire, which is designed to illuminate a wide variety of settings, including commercial, industrial & retail settings such as warehouses, manufacturing plants, etc.

    Write a Review
    SKU:
    VLEDHBR

    Product Description


    Product Videos

    Custom Field

    Product Reviews

    Write a Review
