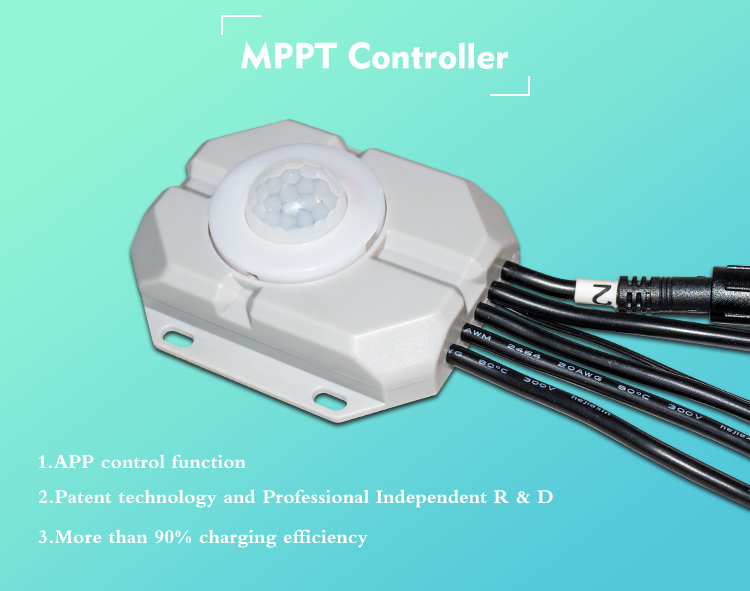

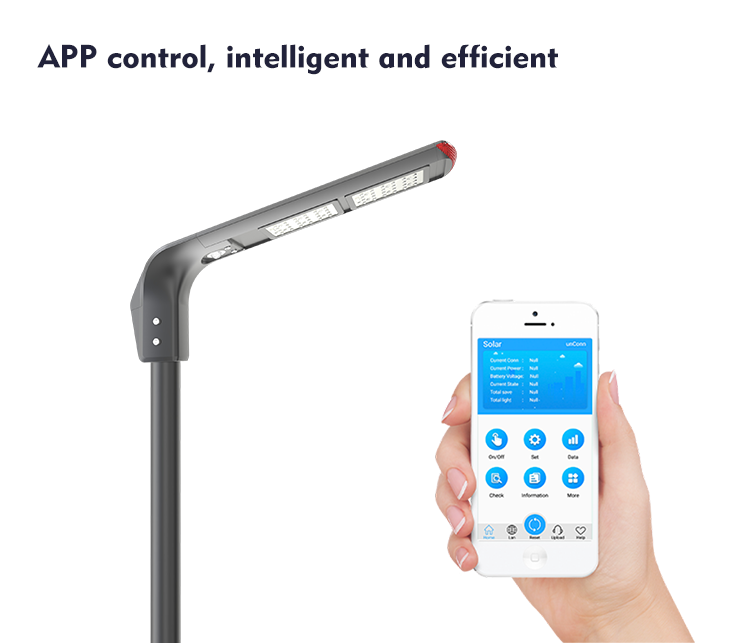

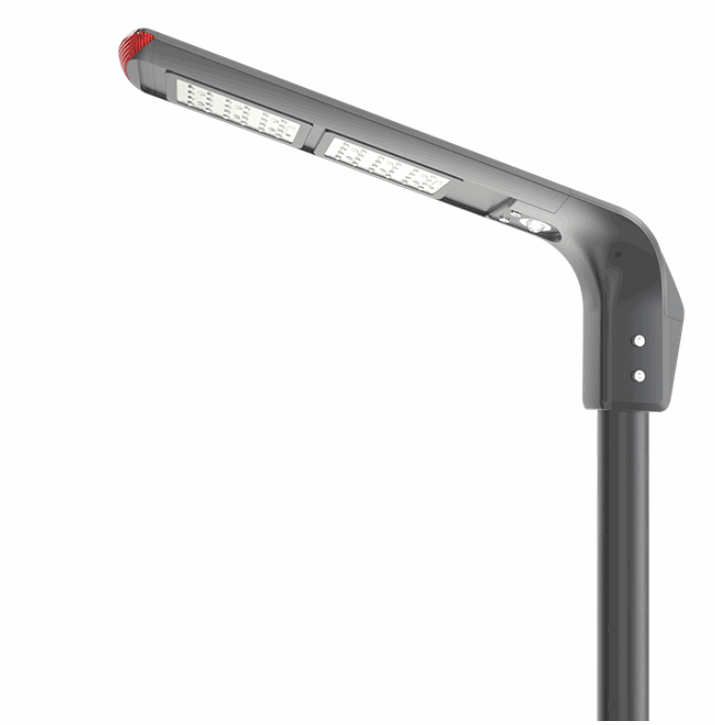

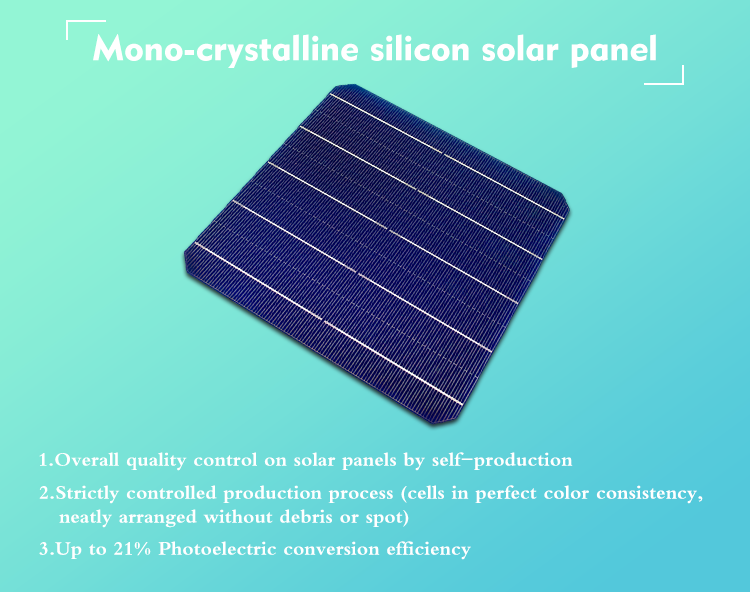

• Solar panel: high efficiency monocrystalline silicon with 25 years lifetime LED lamp: Bridgelux from USA, good quality for 50000h lifes Power Lithium Battery: high capacity lithium battery, intelligent charging to prolong battery's service life MPPT Controller: Independently developed intelligent MPPT controller with 95% Charging efficiency Die-cast aluminum integrated molding PIR sensor Light/time control Smart phone App Control
  • Solar Cobra Head Area Light
  • Solar Cobra Head Area Light
  • Solar Cobra Head Area Light
  • Solar Cobra Head Area Light

    • Solar Cobra Head Area Light

    Write a Review
    SKU:
    VNL

    Product Description

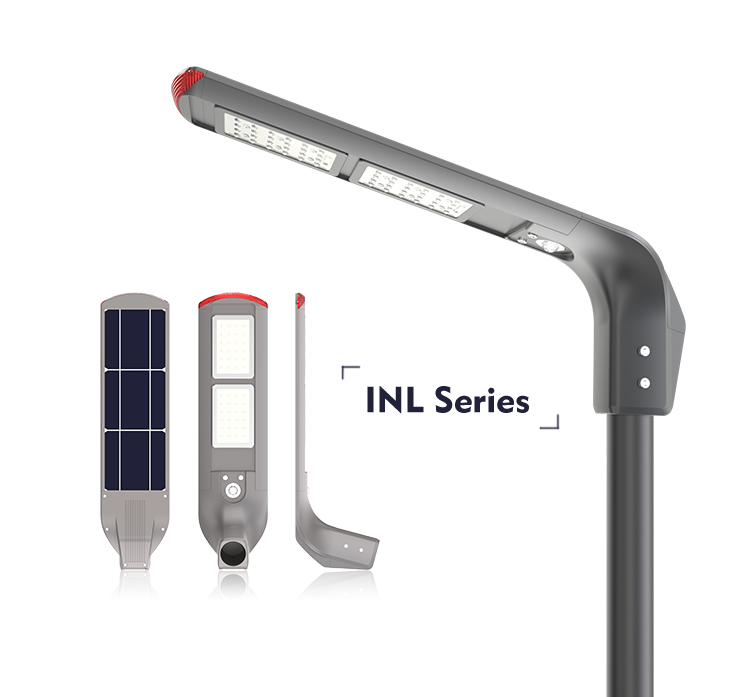

    20200601150825180.png@!w1200

    20200601150827966.png@!w1200


    Power VNL-15W VNL-20W VNL-30W VNL-40W
    Electrical Characteristic
    Solar Panel Power 18V 10W 18V 20W 18V 30W 18V 40W
    Battery Capacity 12V/5.2AH 12V/10.4AH 12/15.6AH 12V/20.8AH
    Charge Time 6-8H
    Discharge Time >36H
    Operate Temperature -25℃～+65℃
    Swith Threshold 15LUX
    Max sense diatance <12M
    LED Parameters
    LED Beads 24 units（3030） 48 units（3030） 72 units（3030） 96 units（3030）
    Lumen Flux 2100-2550 2800-3400 4200-5100 5600-6800
    Luminous Efficiency 130-150LM/W
    CCT 2800-6500K
    Mechanical Specification
    Light Body Size(MM) 760*180*220 1080*180*220 1410*180*220 1730*180*220
    Installation Height(M) 3-5 4-6 5-7 6-8
    Pole Install Distance(M) 9—15 9—15 15—21 18—24

    20200601150825474.jpg@!w1200

    20200601150826262.png@!w1200

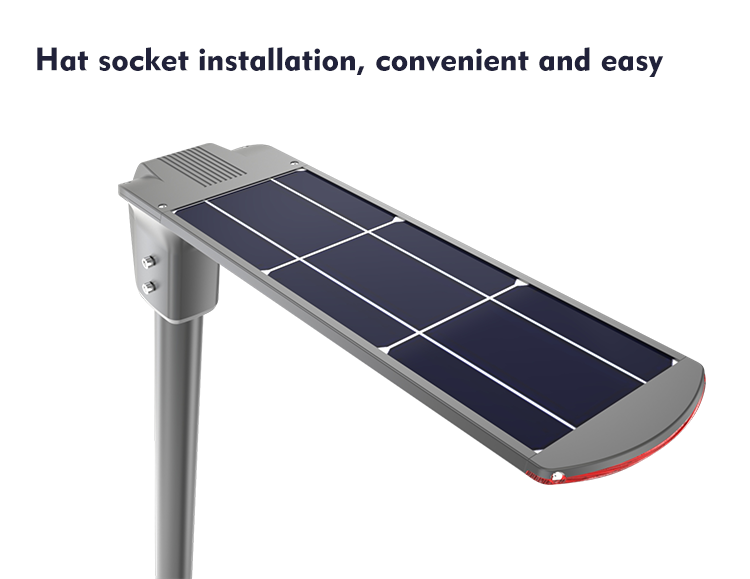

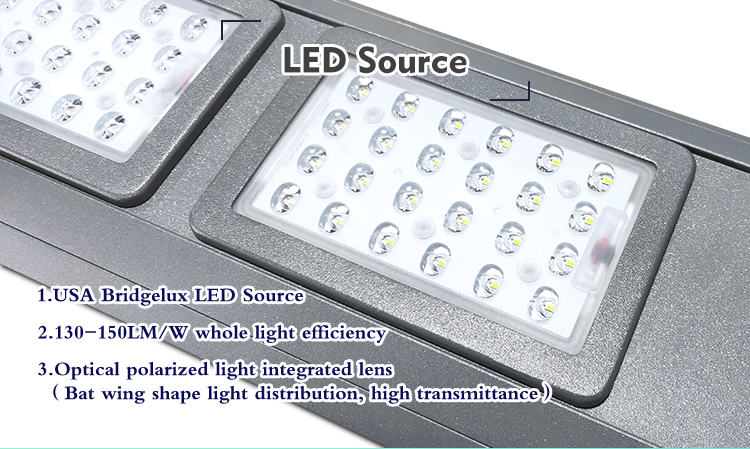

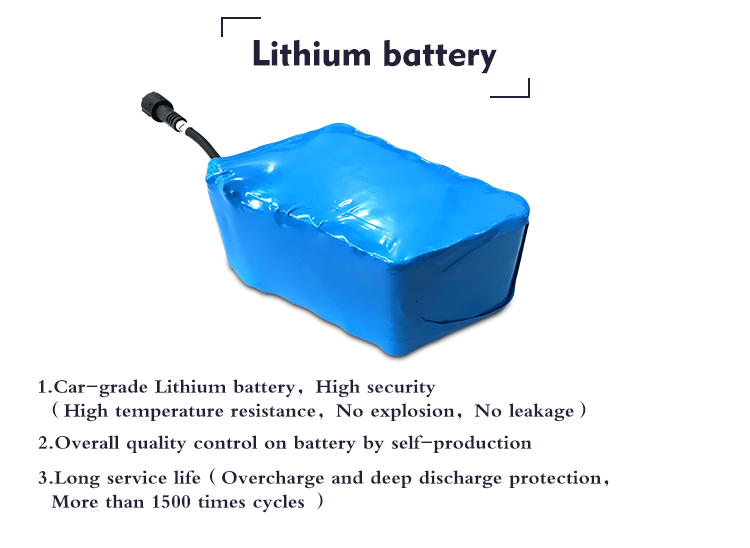

    20200601150826314.png@!w120020200601150826194.png@!w120020200601150826273.png@!w120020200601150827912.png@!w120020200601150827997.png@!w120020200601150827629.png@!w1200
