• Field selectable 3000k (warm white), 4000k (neutral white), and 5000k (cool white) color temperatures.* ▪ Long-life LEDs provide 149,000 hours of operation with at least 70% of initial lumen output (L70), and 44,000 hours with at least 90% of initial lumen output (L90).** ▪ LED chromaticity based on < 6-step ANSI quadrangles. ▪ LED color maintenance < 0.002 chromaticity shift (Δu’v’) over the initial 6,000 hours of operation. ▪ CP-10L-LKFS provides a range of 6,800 to 10,500 nominal lumens.* ▪ Universal 120-277 AC voltage (50-60Hz) is standard. ▪ 0-10vdc dimming drivers are standard. ▪ Mounting options include surface-mounting and pendant-mounting using ¾” electrical conduit. ▪ Optional occupancy/daylight sensor provides both on/off and dimming functions. ▪ Power factor > 0.90. ▪ Total harmonic distortion < 20%. ▪ Color rendering index > 80. ▪ Die cast aluminum housing with dark bronze or white powder coat finish. ▪ Polycarbonate lens. ▪ Easy installation in new construction or retrofit. ▪ cULus listed for wet locations in ambient temperatures from -40°C to 40°C (-40°F to 104°F). ▪ IP65 rated for ingress protection. ▪ Lens is IK08 rated for impact. ▪ DLC premium approved for Fuel Pump and Parking Garage categories. ▪ Complies with FCC Part 15, class B. ▪ Complies with IEC/EN61000-4-5, input transient surge immunity protection (4kV). ▪ 5-year warranty on all electronics and housing.
  • Lumen and Kelvin Field Selectable Canopy - 10L/8L/7L - 3K/4K/5K
  • Lumen and Kelvin Field Selectable Canopy - 10L/8L/7L - 3K/4K/5K

    • Lumen and Kelvin Field Selectable Canopy - 10L/8L/7L - 3K/4K/5K

    Write a Review
    SKU:
    VCP-10L-LKFS

    Product Description

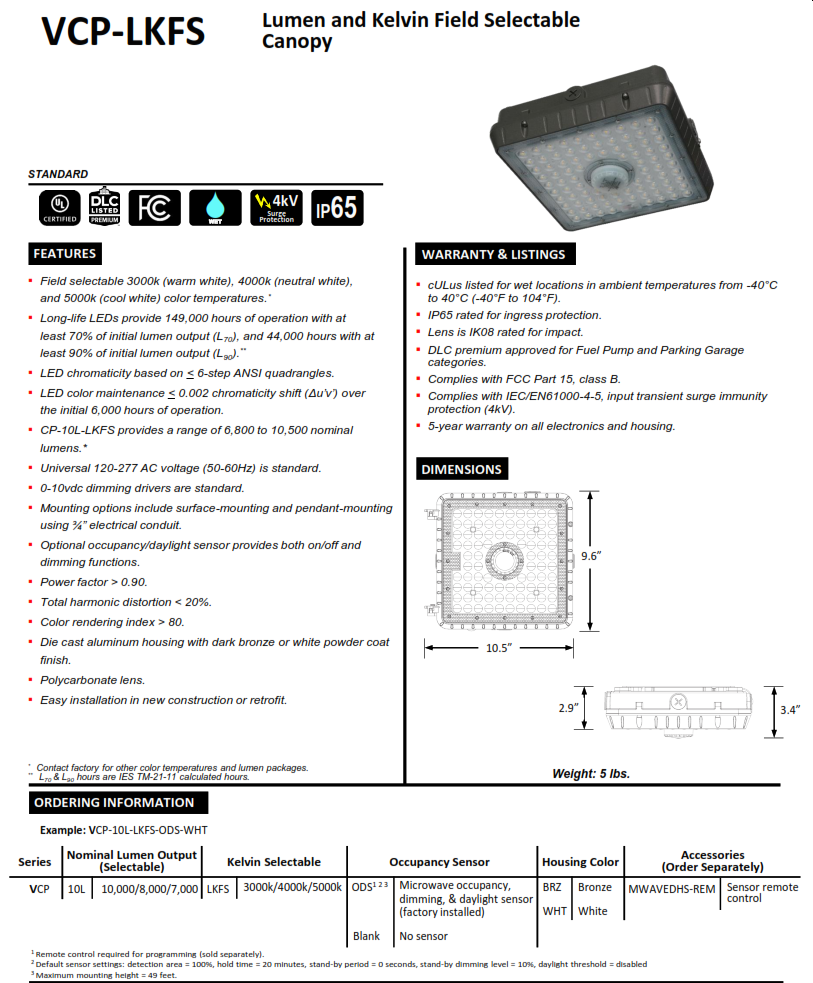

     Download Specification Sheet
