Product Description

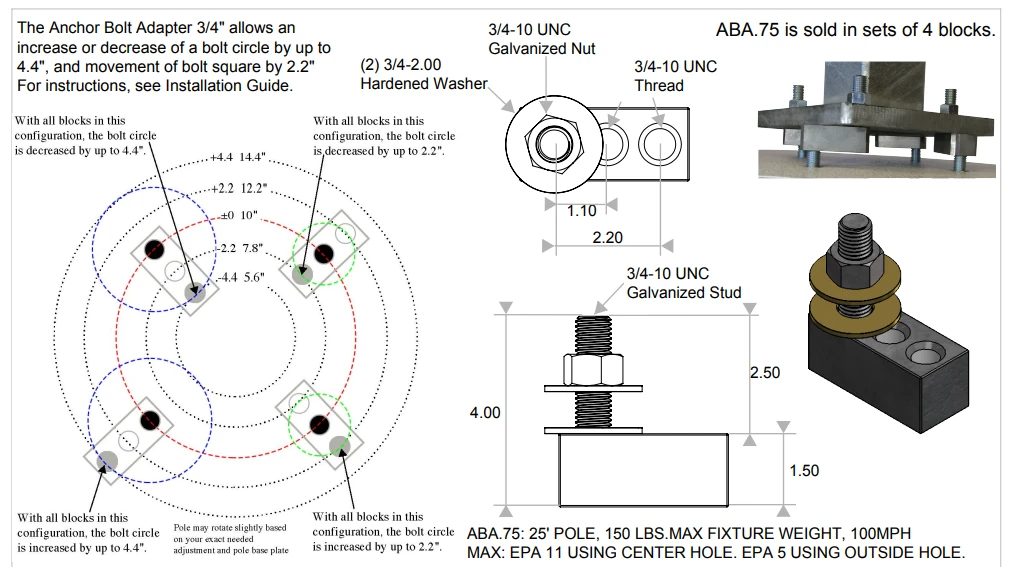

Anchor Bolt Pattern-Adjustment Options
The anchor bolt circle can adjust a bolt circle to:
ABA.75: by exactly 2.2” or 4.4” of bolt circle adjustment without rotating the light pole or any adjustment up to 4.4” with rotating the light pole.
ABA1 & ABA1-.75: by exactly 2.5” or 5” of bolt circle adjustment without rotating the light pole or any adjustment up to 5” with rotating the light pole.
If the anchor bolts are not centered in the footing the Anchor Bolt Adapters allow for up to ABA.75: 2.2 inches, ABA1 & ABA1-.75: 2.5 inches of lateral movement for each anchor bolt.
If the anchor bolts are not clocked correctly, the Anchor Bolt Adapters can rotate the pole on the footing. The amount of rotation depends on the bolt circle.
