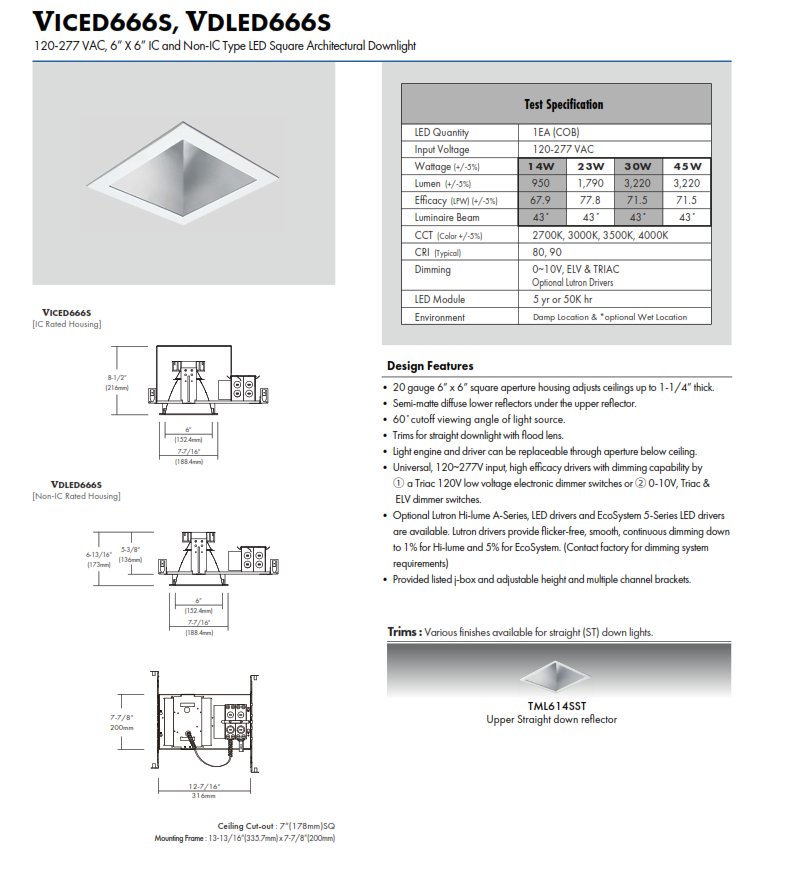

• VDLED666S 120-277 VAC, 6″ X 6″ Non-IC Type LED Square Architectural Downlight • 20 gauge galvanized steel 6” X 6“ square aperture housing adjusts for ceiling up to 1-1/4” thick. • Semi-matte diffuse lower reflectors under the upper reflector. • 60˚ cutoff viewing angle of light source. • Trims for straight downlight with flood lens. • Light engine and driver can be replaceable through aperture below ceiling. • Dimmable driver for 0~10V dimmer is standard, (consult to factory on other options for Dali, PMW etc). • Provided listed j-box and adjustable height and multiple channel brackets. • cETLus Listed.
  • 6" LED Square Architectural Shallow Square Downlight
  • 6" LED Square Architectural Shallow Square Downlight

    • 6" LED Square Architectural Shallow Square Downlight

    Write a Review
    SKU:
    VDLED666S

    Product Description




     Download Specification Sheet
