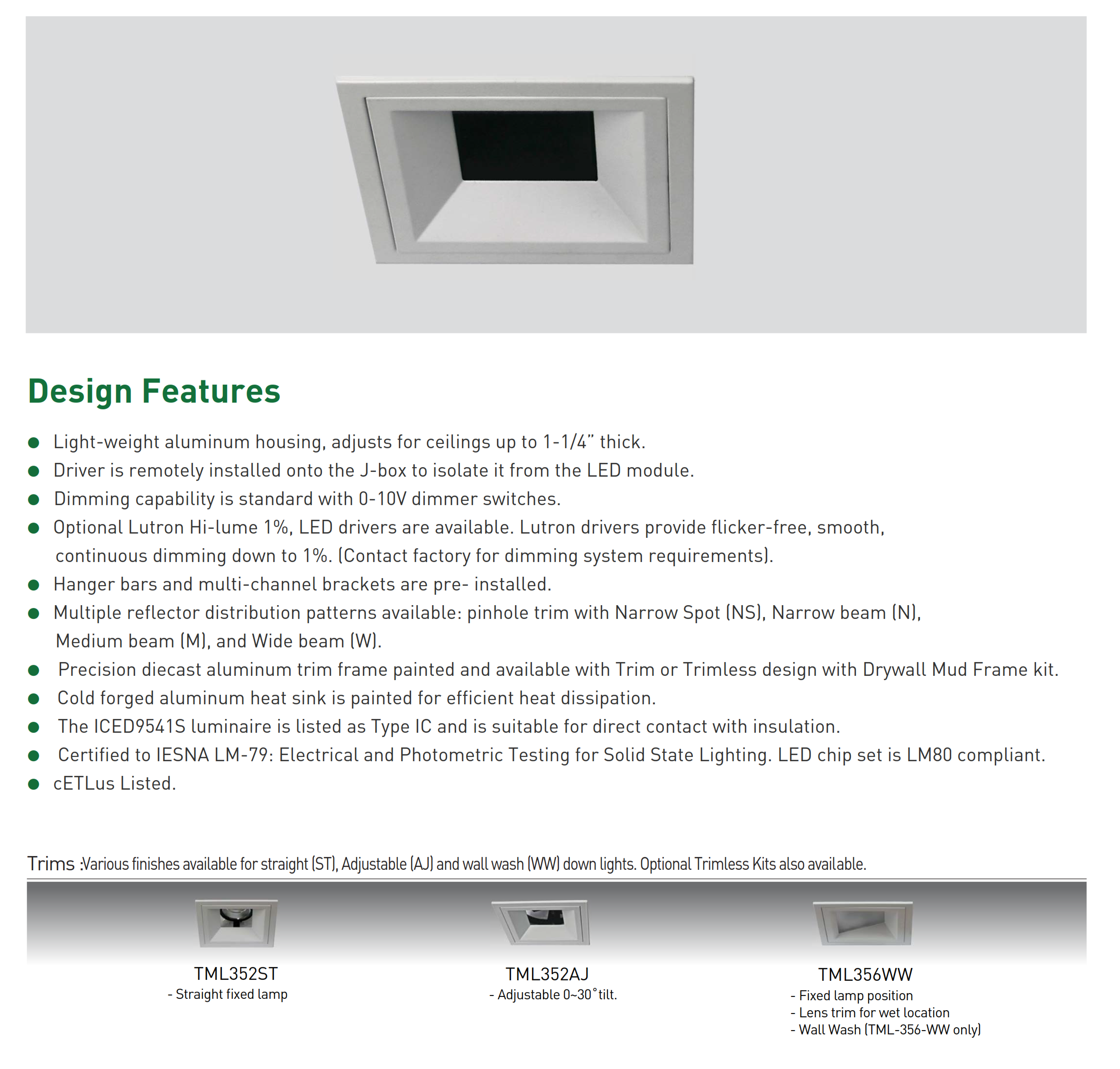

• 120-277 VAC, 4″ X 4″ IC Type LED Square Architectural Downlight • Light-weight aluminum housing, adjusts for ceilings up to 1-1/4” thick. • Driver is remotely installed onto the J-box to isolate it from the LED module. • Dimming capability is standard with 0-10V dimmer switches. • Hanger bars and multi-channel brackets are pre- installed. • Multiple reflector distribution patterns available: pinhole trim with Narrow Spot (NS), Narrow beam (N), Medium beam (M), and Wide beam (W). • Certified to IESNA LM-79: Electrical and Photometric Testing for Solid State Lighting. LED chip set is LM80 compliant. • Precision diecast aluminum trim frame painted and available with Trim or Trimless design with Drywall Mud Frame kit. • Cold forged aluminum heat sink is painted for efficient heat dissipation. • cETLus Listed.

    • VICED9541S-IC Airtight and Non-IC Type LED Square Architectural Downlight

    Write a Review
    SKU:
    VICED9541S/DLED9541S

    Product Description

    Donl

    Downloads:

    Spec Sheet
